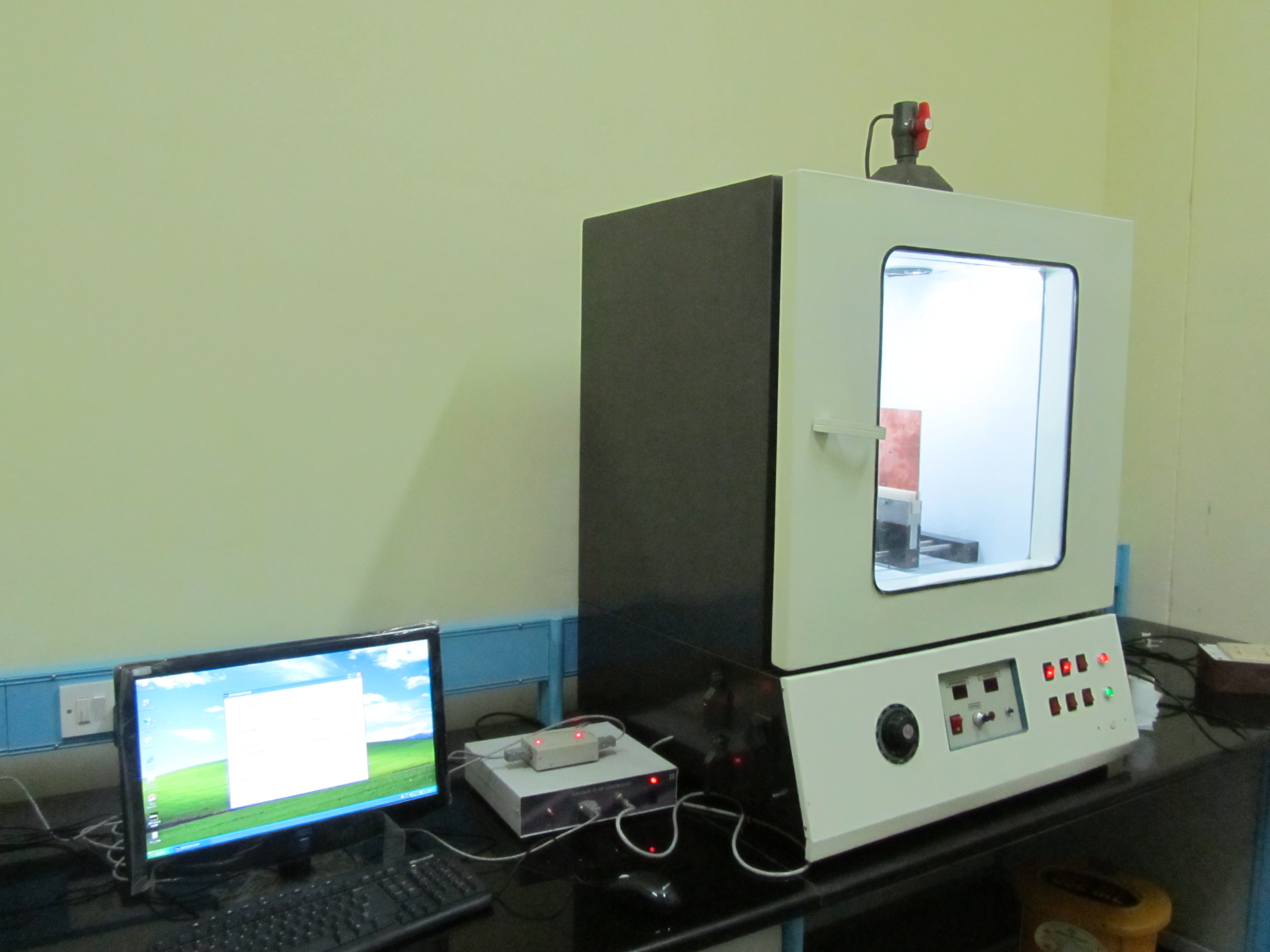

ES-NANO

Technical Details

Spinning Arrangment:	Horizontal Spinning; Vertical Spinning; Inert gas Spinning; Under Solvent Spinning
	------------------------------------------------------------
Input Voltage	90-240V AC;50-60 hz
Output voltage:	0-50 KV
Output current	400uA
	Digital voltage and current monitering• Constant voltage mode • Built-in arc protection circuit • Overload trip protection available • Auto Shut down when door is open • Static charge removal ------------------------------------------------------------
Syringe Pump	Double channel pump Flow rate : 1 ul/min to 10 ml/min Programming : Multistage programming Control : Volume, Time and Diameter Acceptable Syringe size : 1 ml to 60 ml Control : Microprocessor control ------------------------------------------------------------
Collector Assembly	Drum Collector (SS) : Dia: 0.5, 5, 10, 15, 25, 50 and 100 mm and Length: 200 mm Disc Collector (SS) : Diameter : 10 mm; Width : 10 mm; length : 200 mm Window/Grooved Collector: Dia : 100 mm; length : 200 mm with 10 windows Plate Collector : 200 X 200 mm Acceptable Syringe size : 1 ml to 60 ml Diffrent Size Drum : As per customer requirment (2,3,4,5,6 and 8 mm, length : 200 mm ) Drum Speed (RPM) : 100-6000 ------------------------------------------------------------
Spinneret	Core-Shell : Co-axial nozzle for making core-shell, hollow and for Bi-component fiber Multi Nozzle : Multi-nozzle for high throughput Single Nozzle: Interchangeable single nozzle ------------------------------------------------------------
Linear Stage and conveyor belt	X– Axis : Programmable with fine mobility Y-Axis : Programmable with fine mobility Z– Axis : Manual control Conveyor belt system : 200 mm coating width ------------------------------------------------------------
Spinning Chamber	Computer Control System Grounded with Resistance coating Inlet and outlet gas port Cabinet temperature controller with display of ambient to 60 degree C UV light for photo curable polymer curing Humidity control : 25-80% Movable compact Vaccum Chamber ------------------------------------------------------------
Special features	Short circuit or spark protected Regulated output voltage Dual digital panel meter (I & V) Over load trip protection Low back up energy requirement ------------------------------------------------------------
Other Accessories for special Purposes	Fiber cutting arrangment Near Filed Electrospinning arrangment Nanofiber Dryer Syringes with Needles, Chemical Resitance tubing, Camera for Vissualiztion, keyset
